Usercentrics

Integrates Usercentrics consent management with walkerOS by listening for a configured window event and mapping category or service consent state to walkerOS consent groups.

Installation​

npm install @walkeros/web-source-cmp-usercentrics
import { startFlow } from '@walkeros/collector';
import { sourceUsercentrics } from '@walkeros/web-source-cmp-usercentrics';

await startFlow({
  sources: {
    consent: {
      code: sourceUsercentrics,
      config: {
        settings: {
          eventName: 'ucEvent', // Must match your Usercentrics admin config
          categoryMap: {
            essential: 'functional',
            functional: 'functional',
            marketing: 'marketing',
          },
        },
      },
    },
  },
});

Configuration​

This source uses the standard source config wrapper (consent, data, env, id, ...). For the shared fields see source configuration. Package-specific fields live under config.settings and are listed below.

Settings​

PropertyTypeDescriptionMore
eventNamestringWindow event name to listen for, configured in the Usercentrics admin (Implementation > Data Layer & Events). Use 'UC_SDK_EVENT' for the built-in Browser SDK event. Default: 'ucEvent'.
categoryMapRecord<string, string>Map the CMP's consent categories (keys) to walkerOS consent groups (values).
explicitOnlybooleanOnly process consent_status events where type is 'explicit'. Ignores implicit/default page-load events. Default: true.

Mapping​

This package does not define custom rule-level settings. For the standard rule fields (consent, condition, data, batch, name, policy) see mapping.

Examples

Category map override

Custom categoryMap remaps essential to functional and functional to analytics

Event
Mapping
Out

Custom event name

Using UC_SDK_EVENT instead of ucEvent for Usercentrics SDK v2

Event
Mapping
Out

Full consent

A Usercentrics onAcceptAllServices event emits a walker consent command with essential, functional, and marketing granted.

Event
Out

Minimal consent

A Usercentrics onDenyAllServices event emits a walker consent command with only essential granted.

Event
Out
SettingTypeDefaultDescription
apiVersion'auto' | 'v2' | 'v3''auto'Which Usercentrics API to target (auto-detects by default)
eventNamestring'ucEvent'V2 window event name configured in Usercentrics admin
v3EventNamestring'UC_UI_CMP_EVENT'V3 window event name (overridable for custom admin configs)
categoryMapRecord<string, string>{}Maps Usercentrics categories to walkerOS consent groups
explicitOnlybooleantrueOnly process explicit consent (user made a choice)

V2 vs V3 support​

The source supports both Usercentrics V2 (window.UC_UI) and V3 (window.__ucCmp) APIs. With the default apiVersion: 'auto', detection runs at init:

  • If the CMP is already initialized, consent is read statically from the available API — this fixes the race where V3's UC_UI_CMP_EVENT fires before walkerOS loads.
  • If no CMP is present yet, listeners for both V2 and V3 events are registered so late-loading CMPs are still caught.
  • When both APIs are available, V3 is preferred.

Set apiVersion: 'v2' or 'v3' to force a specific integration.

Usercentrics setup​

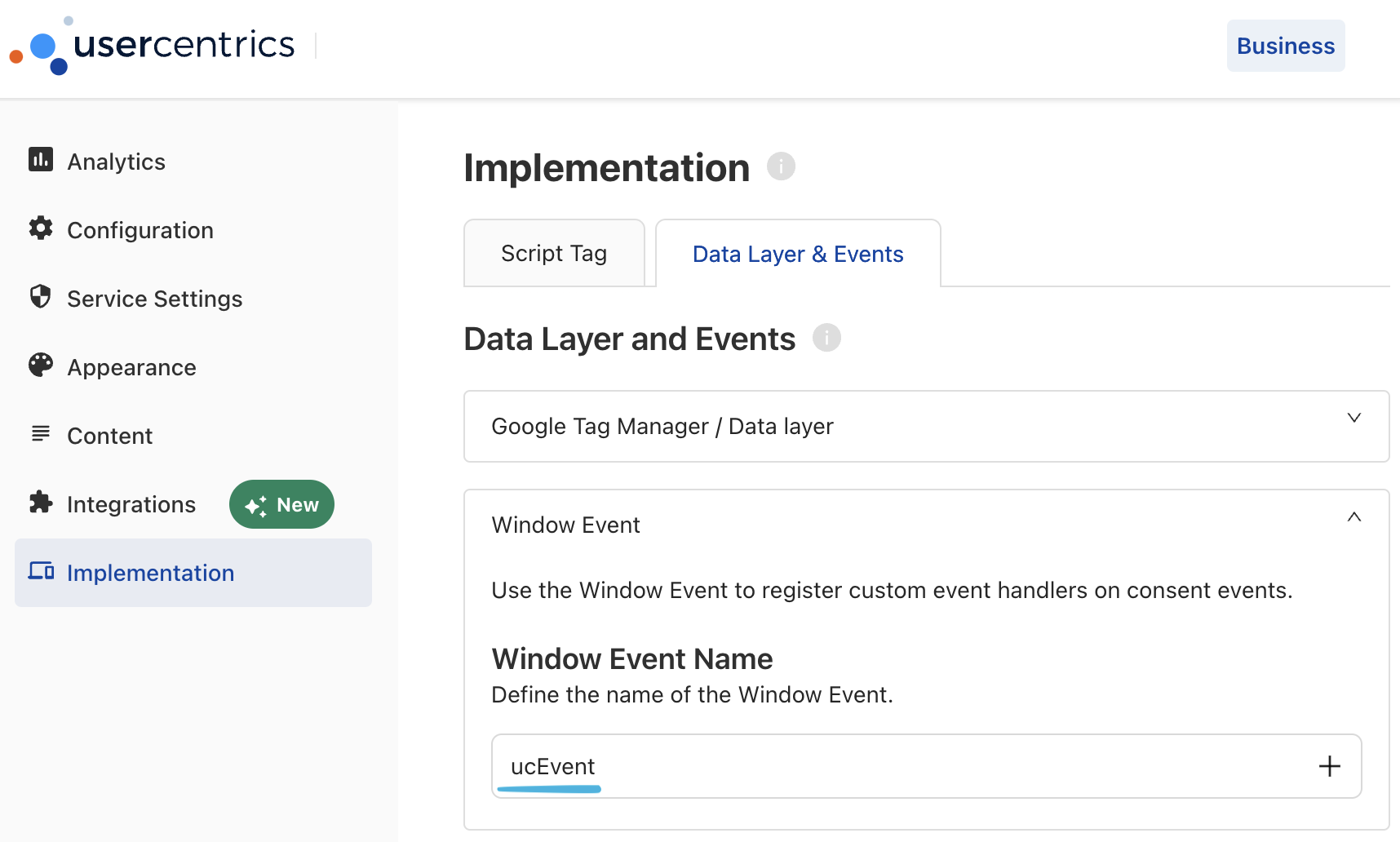

Configure a Window Event in your Usercentrics admin: Implementation > Data Layer & Events > Window Event Name (e.g., ucEvent).

Usercentrics window event implementation

Alternatively, set eventName: 'UC_SDK_EVENT' to use the built-in Browser SDK event (no admin configuration required).

Custom mapping example​

await startFlow({
  sources: {
    consent: {
      code: sourceUsercentrics,
      config: {
        settings: {
          eventName: 'ucEvent',
          categoryMap: {
            essential: 'functional',
            functional: 'functional',
            marketing: 'marketing',
          },
          explicitOnly: true,
        },
      },
    },
  },
});

How it works​

  1. API detection: Reads consent statically from window.UC_UI (V2) or window.__ucCmp (V3) if already initialized, otherwise registers event listeners for both APIs so post-init events are still captured.

  2. Group vs. service detection: Checks if ucCategory values are all booleans:

    • Group-level: Uses ucCategory as consent state (maps categories via categoryMap)
    • Service-level: Extracts individual service booleans from event.detail (normalized to lowercase_underscores) and applies categoryMap to boolean ucCategory entries

  3. Explicit filtering: By default, only processes events where type === 'explicit' (user actively made a choice). Set explicitOnly: false to also process implicit/default consent.

  4. Consent command: Calls elb('walker consent', state) with the mapped consent state.

Timing considerations​

The source should be initialized before the Usercentrics script loads to avoid missing the initial consent event. When using explicitOnly: true (default), this is not a concern since the implicit init event is filtered anyway. For explicitOnly: false, ensure the consent source has no require constraints so it initializes immediately.
